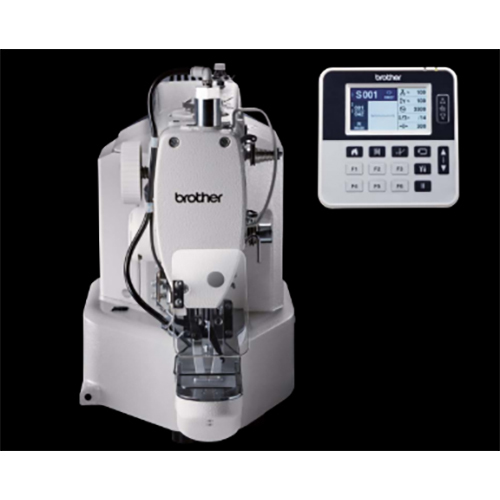

Brother KE-430HS Bartacking Sewing Machine

Get a Price/Quote

MOQ : 1 Piece

Brother KE-430HS Bartacking Sewing Machine Specification

Power
550W

Product Type
Bartacking Sewing Machine

Stitch Formation
Bartack

Needle
DPx5 #14 (Standard), #11-#18 usable

Condition
New

Stitch Length
1-5mm

Sewing Speed
Max. 3,200 stitches/min

Sewing Thickness
Up to 4mm (Depending on material and application)

Stitch width
2-10mm

Voltage
Single Phase 220V/50-60Hz

Color
White/Grey

Feed Mechanism
Direct Drive Electronic Feed

Dimension (L*W*H)
690mm x 330mm x 690mm (approx.)

Control Panel
LCD Touch Panel with Multi-Language Support

Bobbin Type
Rotary Hook

Lubrication System
Semi-Dry Head

Noise Level
Low Noise Vibration Design

Thread Trimmer
Automatic

Max Bartack Size
30mm (L) x 40mm (W)

Weight
Approx. 54 kg

Application
For fabrics, denim, knits, synthetic, leather, etc.

Thread Clamp Device
Standard

Memory Capacity
Up to 50 patterns

Brother KE-430HS Bartacking Sewing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About Brother KE-430HS Bartacking Sewing Machine

Model	KE-430HX				KE-430HS		BE-438HX
	-01	-03	-05	-0K	-03	-05
Application	Light materials	Medium materials	Heavy materials	Knitted materials	Medium materials	Heavy materials	Button attaching
Lubrication	Semi-dry				Minimum lubrication		Semi-dry
Max. sewing speed	3,300sti/min						2,800sti/min
Sewing area	Max.4030mm¹						Max.6.46.4mm
Dimensions of buttons that can be Sewn							Outer diameter of buttons 8-30mm²
Stitch length	0.0512.7mm						0.056.4mm
Feed mechanism	Y- intermittent feed mechanism (pulse-motor driven mechanism)
No. of stitches	Variable (Refer to "Program List" for details on the number of stitches for sewing patterns that are already preset)
Max. No. of stitches	5,000 stitches/pattern
Work clamp lifter	Pulse motor drive system
Work clamp height / Button clamp height	Max. 17mm						Max. 13mm
Rotary hook	Shuttle hook (double shuttle hook, optional)
Digital tension	Standard equipment						Standard equipment
Thread wiper	Standard equipment
Thread trimmer	Standard equipment
Thread nipper	-01,-03,-0K:Standard equipment (-05:Option)				Option
Data storage method	Internal flash memory (Data addition is available with external memory)
No. of cycle programs	30 cycle (50 programs for each cycle)
No. of stored data	89 sewing patterns are set already				64 sewing pattern are set already
	(Up to 500 patterns can be added. Total number of stitches of stored data which can be added is within 500,000.³)
Motor	AC servo motor 550W (Direct Drive)
Weight	Machine head: Approx. 58kg, Operation panel: Approx. 0.5kg, Control box: Approx. 7kg
Power supply	Single-phase 100V/220V, 3-phase 220V/380V/400V 400VA (For single-phase 100V and 3-phase 380V/400V, the trans box is required.)

Elevate your production line with the Brother KE-430HS Bartacking Sewing Machine-your gateway to enviable efficiency and savings. This top-rated marvel is engineered with a semi-dry head lubrication system and a wondrous automatic thread trimmer, ensuring minimal fuss and maximum precision. The crackerjack LCD touch panel, supporting multi-language commands, lets you utilise offers like up to 50 built-in patterns. Enjoy low noise and vibration, working seamlessly across denim, leather, knits, and synthetics. Harness the full spectrum of possibilities in one stylish, dependable machine. Ideal for suppliers and wholesalers across India.

Exceptional Versatility & Competitive Edge

The Brother KE-430HS Bartacking Sewing Machine presents a powerful competitive advantage with its advanced direct drive electronic feed and automatic thread trimming. Its application surface spans denim, leather, knits, synthetics, and other fabrics, making it exceptionally versatile. The robust semi-dry head and rotary hook design ensure consistent performance even under rigorous use. With a user-friendly LCD touch panel and multi-language support, it's tailored for maximum operator efficiency across diverse garment manufacturing environments.

Export Market, Sample Charges & Packaging Excellence

Brother KE-430HS Bartacking Sewing Machine serves a broad export market, catering mainly to Asia, the Middle East, and Africa. For sample requests, charges may apply and estimates are provided upfront. Each machine is meticulously packaged with export-standard materials ensuring shipment safety and prompt delivery. The process from order confirmation to shipment is streamlined for swift handling, reflecting our commitment to reliability and customer satisfaction in international trade.

FAQ's of Brother KE-430HS Bartacking Sewing Machine:

Q: How does the semi-dry head lubrication system benefit users?

A: The semi-dry head lubrication system reduces oil stains and maintenance frequency, resulting in a cleaner work environment and longer service life for the Brother KE-430HS.

Q: What types of materials can be sewn with this machine?

A: The Brother KE-430HS supports a range of materials including denim, leather, knits, synthetics, and standard fabrics, accommodating various garment manufacturing needs.

Q: Where can I purchase the Brother KE-430HS Bartacking Sewing Machine in India?

A: This model is available through authorised suppliers, traders, and wholesalers across India. You can contact local dealers or the main distributor for purchasing information.

Q: What is the process for requesting a sample and what are the charges?

A: Buyers can request samples for review. Charges and shipping estimates are provided before dispatch, ensuring transparency and efficiency in the trial process.
