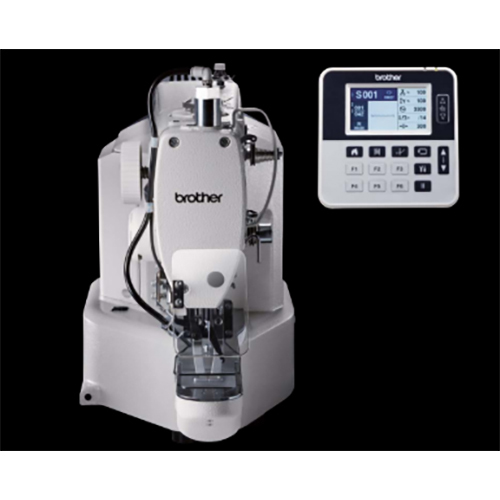

Brother Bar Tack Machine

Get a Price/Quote

MOQ : 1 Piece

Brother Bar Tack Machine Specification

Sewing Speed
3200 Stitches Per Minute (max)

Voltage
Single Phase, 220-240V, 50/60Hz

Stitch width
1.5 to 10 mm (adjustable)

Product Type
Bar Tack Sewing Machine

Condition
New

Power
400W (approx., varies by model)

Feed Mechanism
Direct Drive

Stitch Formation
Lockstitch

Needle
DPx5 (#11-#18) or Equivalent

Sewing Thickness
Medium to Heavy Duty (Typically 2-8 mm, depends on model)

Stitch Length
1.5 to 5 mm (adjustable)

Color
White / Grey

Dimension (L*W*H)
Approx. 670mm x 670mm x 780mm (may vary by exact model)

Weight
About 55-65 kg (may vary by model)

Lubrication
Semi-Dry (minimum oil)

Control Panel
Digital LCD Programmable Panel

Lighting
LED light over needle area

Application
Bar tacking on waistbands, pockets, belt loops, labels, etc.

Thread Cutter
Automatic

Noise Level
Low-noise operation

Usage
Industrial Garment Manufacturing

Memory Capacity
Stores multiple pattern programs

Pattern Selection
Pre-programmed and user-programmable patterns

Brother Bar Tack Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About Brother Bar Tack Machine

Model Subclass	KE-430DP	BE-438DP
Stitch formation	Single needle lock stitch
Max. sewing speed	3,200 sti/min	2,700 sti/min
Sewing area	Max.4030mm	6.4x6.4mm
Stitch length	0.1-12.7mm	0.05-6.4mm
Feed mechanism	Y- internet feed mechanism (pulse-motor driven mechanism)
No. of stitches	Variable (Refer to program List for details on the number of stitches for sewing patterns that are already preset)
Work clamp lifter	Pulse motor drive system
Work clamp height	Max. 17mm	Max. 13mm
Rotary hook	Shuttle hook
Thread wiper	Standard equipment
Thread trimmer	Standard equipment
Data storage method	Internal flash memory (Data addition is available with external memory)
No. of user programs	99
No. of cycle programs	30cycle (50programs for each cycle)
No. of stored data	89 sewing patterns are set already	64 sewing patterns are set already
Motor	AC servo motor 750W (Direct Drive)
Weight	Machine head: Approx. 52kg
Power supply	1-phase 200V-240V 600VA

Presenting the Brother Bar Tack Machine-a gilt-edged solution for modern garment production lines in India. With an unprecedented blend of digital LCD programmability and semi-dry lubrication, this machine ensures unmatchable bar tacking on waistbands, pockets, belt loops, and labels. Its LED-lit needle area, automatic thread cutter, and ultra-low noise resonate with efficiency. Reserve your workflow's freshness with a memory capacity for diverse patterns, direct-drive mechanism, and consistent output, tailored for medium to heavy-duty applications. This marvel supports adjustable stitches and robust performance, making it ideal for industrial tailoring.

Versatility and Application in Industrial Settings

The Brother Bar Tack Machine is engineered for both specific and broad tailoring uses, excelling in bar tacking on waistbands, labels, pockets, and belt loops. This robust tool is suitable for use in garment manufacturing plants, especially where medium to heavy-duty fabrics need precise reinforcement. Its adaptable pattern options and programmable functionality make it an ideal fit for factories aiming for both standardization and customization in their finishing processes.

Certifications, Packaging, and Reliable Supply Chain

Every Brother Bar Tack Machine arrives with verified certifications to ensure reliability and compliance in your sewing operations. The packaging is designed for secure shipping, preserving the integrity of each component during transit, so the product arrives unscathed and ready for use. With a strong supply capability for traders and wholesalers in India, you can plan your outlay efficiently knowing that consistent restocking and prompt delivery will meet your plant's demand.

FAQ's of Brother Bar Tack Machine:

Q: How does the programmable control panel benefit garment manufacturers?

A: The digital LCD programmable panel allows manufacturers to store and select from various bar tack patterns, which speeds up workflow, reduces operator error, and ensures consistency across production batches.

Q: What applications is the Brother Bar Tack Machine best suited for?

A: It is ideal for bar tacking on waistbands, belt loops, pockets, labels, and similar garment features, making it indispensable in industrial garment manufacturing environments.

Q: When should I choose this machine for production?

A: Opt for the Brother Bar Tack Machine when you require medium to heavy-duty tacking with adjustable stitch patterns, reliable speed, and automation in fast-paced production settings.

Q: Where can this machine be installed?

A: This machine is suitable for installation in garment manufacturing plants, especially those dealing with large-scale clothing assembly and reinforcement tasks.

Q: What is the supply process and shipping assurance for bulk buyers?

A: Machines are packaged for secure shipping and dispatched promptly. The supplier ensures reliable stock levels, so your order will arrive efficiently and in optimal condition, supporting continuous plant operations.

Q: How does low-noise operation improve the work environment?

A: The low-noise design helps maintain a more comfortable and less stressful working environment, promoting higher productivity and easier communication among staff.
