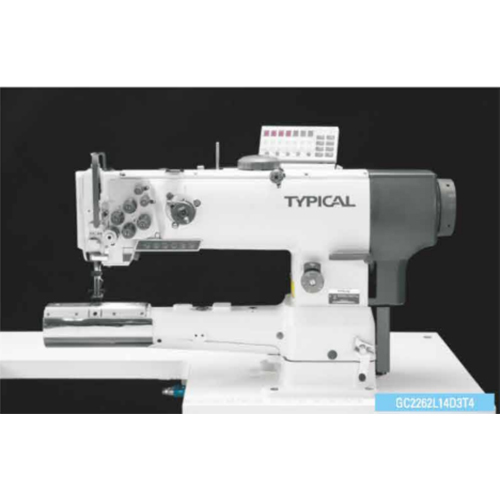

TYPICAL GC2263L14D3T4 Sofa Sewing Machine

Send Inquiry

Request To Call Back

TYPICAL GC2263L14D3T4 Sofa Sewing Machine

Get a Price/Quote

MOQ : 1 Piece

TYPICAL GC2263L14D3T4 Sofa Sewing Machine Specification

Frame Type
Robust cast iron

Production Capacity
Up to 2500 SPM

Drive
Direct Drive

Model No
GC2263L14D3T4

Voltage
220V - 240V, single phase

Noise Level
Low noise operation (<70 dB)

Control System
Electronic control

Frequency
50Hz/60Hz

Motor Power
Direct Drive 550W

Accuracy
High sewing precision for heavy fabrics

Operating Temperature
5C to 40C

Features
Automatic thread trimmer, compound feed, large hook, reverse sewing, heavy material capacity

Machine Type
Double needle, compound feed

Cooling System
Air cooled / self-ventilated motor

Lubricating System
Automatic lubrication

Power Rating
550W / 0.75 HP

Product Type
Sofa Sewing Machine

Technology
High-speed compound feed sewing technology

Power Source
Electric

Operating Type
Automatic

Power
550W

Pressure
Standard adjustable presser foot pressure

Surface Treatment
Painted / Powder Coated

Dimension (L*W*H)
Approx. 1280 x 580 x 1100 mm (with stand)

Weight (kg)
Approx. 70 kg (machine head only)

Color
White & grey

Usage & Applications
Sofa and upholstery sewing, heavy-duty materials, leatherwork

Table Included
Standard industrial sewing table

Max Stitch Length
10 mm

Take-up Lever
Standard upper take-up

Needle Type
DPx17

Application Area
Upholstery, sofa/couch assembling, leather goods, automotive interiors

Hook Type
Large Vertical Hook

Lubrication Type
Fully automatic centralized oiling

Needle Gauge
Standard 14 mm

Sewing Thickness
Suitable for up to 10-12 mm material thickness

Safety Mechanism
Integrated safety clutch

Stitch Type
301 Lockstitch

Thread Trimming
Automatic electronic thread trimmer

Presser Foot Lift Height
Up to 20 mm (by knee)

Bed Type
Flat bed, industrial size

Reverse Sewing
Manual lever control

TYPICAL GC2263L14D3T4 Sofa Sewing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About TYPICAL GC2263L14D3T4 Sofa Sewing Machine

Grab Yours now and experience a crowning advancement in industrial sewing with the TYPICAL GC2263L14D3T4 Sofa Sewing Machine. Meticulously engineered for pristine stitching, this lustrous double-needle, compound feed machine is ideal for upholstery, sofas, leather, and heavy-duty applications. Highlighted features include a powerful 550W direct drive motor, high-speed 2500 SPM output, and an automatic electronic thread trimmer. The robust cast iron frame ensures long-term reliability while a price cut positions this high-tech marvel as an unbeatable value for suppliers and traders in India.

Optimized for Diverse Application Methods

The TYPICAL GC2263L14D3T4 Sofa Sewing Machine is perfectly suited for use in upholstery, sofa/couch assembly, leatherworking, and automotive interiors. Designed for high-volume industrial settings, the machine operates automatically and efficiently thanks to its advanced electronic controls, standard adjustable presser foot pressure, and seamless large hook system. Its heavy-duty capacity enables flawless stitching on thick materials up to 12 mm, making it the prime choice for manufacturers seeking reliable, precise, and versatile performance every time.

Swift Dispatch and Secure Packaging Across India

Shipped with the highest care, every TYPICAL GC2263L14D3T4 unit is securely packed to preserve its market value and pristine condition during transit. Standard dispatching ensures prompt delivery, making it possible for traders and wholesalers across India's main domestic markets to receive their machines within a reliable timeframe. In addition to meticulously checked packaging details, professional support ensures a smooth installation process upon arrival, affirming the machine's premium standing in competitive commercial environments.

FAQ's of TYPICAL GC2263L14D3T4 Sofa Sewing Machine:

Q: How does the TYPICAL GC2263L14D3T4 improve efficiency in sofa and upholstery sewing?

A: The machine offers high-speed stitching up to 2500 SPM, an automatic electronic thread trimmer, and a compound feed mechanism, enabling users to achieve rapid, precise, and consistent results when working with heavy fabrics.

Q: What types of materials can this sewing machine handle?

A: The GC2263L14D3T4 is designed for heavy-duty applications, suitable for textile thicknesses up to 10-12 mm, including upholstery fabrics, leather, and heavy automotive interiors.

Q: Where is this machine primarily used?

A: It is primarily utilized in industrial settings such as sofa factories, leather goods workshops, automotive upholstery units, and furniture assembly production lines across India's commercial markets.

Q: What is the delivery process for this sewing machine?

A: Once ordered, the machine is professionally packed and dispatched, ensuring secure shipping. You can expect reliable and prompt delivery across major domestic markets in India, with packaging designed to maintain the machine's original quality.

Q: What benefits does the integrated safety clutch offer?

A: The integrated safety clutch protects both the operator and the machine by preventing damage due to accidental jams or overloads, ensuring smooth operation and prolonging the machine's lifespan.
