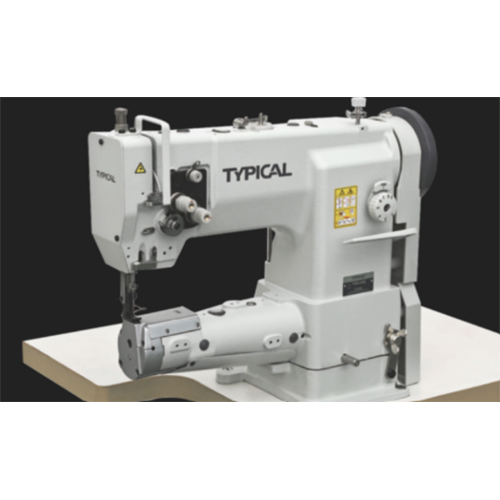

TYPICAL TW3-343 Bag Sewing Machine

Get a Price/Quote

MOQ : 1 Piece

TYPICAL TW3-343 Bag Sewing Machine Specification

Accuracy
High stitch accuracy

Features
Cylinder-bed, Reverse stitching, Heavy-duty construction, Suitable for thick threads, High lift presser foot

Control System
Manual foot control or optional electronic control

Motor Power
0.75 HP

Lubricating System
Semi-automatic lubrication system

Voltage
220V/240V

Machine Type
Bag sewing / Cylinder-bed sewing machine

Cooling System
Natural air cooling

Power Rating
550W/0.75HP

Drive
Belt drive

Model No
TW3-343

Operating Temperature
5C - 40C

Production Capacity
High-volume, Continuous Operation

Noise Level
Low to moderate

Frame Type
Sturdy, Cast iron

Frequency
50Hz/60Hz

Product Type
Bag Sewing Machine

Technology
Industrial Sewing Technology

Power Source
Electric

Operating Type
Manual with electric motor drive

Power
550W

Pressure
Adjustable presser foot pressure

Surface Treatment
Powder Coated/Enamel Finish

Dimension (L*W*H)
660 x 280 x 580 mm (approx.)

Weight (kg)
38 kg (approx.)

Color
White, Gray

Usage & Applications
Sewing bags, sack closing, heavy materials such as canvas, leather, and jute

Shipping Weight
Approx. 47 kg (with packing)

Max Stitch Length
8 mm

Working Speed
Up to 2200 stitches/min

Bobbin Type
Large capacity

Stitch Type
Lockstitch, two thread

Oil Pan
Integrated, semi-automatic lubrication

Needle Type
DPx17 (#22-#24)

Max Sewing Thickness
Up to 10 mm

Thread Type
Heavy duty, synthetic or cotton thread

Included Accessories
Tool kit, Extra needles, Bobbins

Application Material Thickness
Light to extra heavy material

Presser Foot Lift
Up to 16 mm

Number of Needles
Single needle

Feed Type
Compound feed (walking foot)

Bed Type
Cylinder

TYPICAL TW3-343 Bag Sewing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About TYPICAL TW3-343 Bag Sewing Machine

Order the Elite TYPICAL TW3-343 Bag Sewing Machine for performance that redefines expectations. Engineered for brilliant operations, this robust workhorse boasts an astounding max speed of 2200 stitches/min, handling light to extra heavy materials with ease. Featuring a single needle lockstitch, large bobbin capacity, and heavy-duty thread compatibility, it ensures seamless, high-volume bag sewing and sack closing. The compound feed mechanism and 16 mm presser foot lift conquer thick layers effortlessly. Shop now and experience elite sewing capability, efficiency, and remarkable build quality, perfectly suited for industrial-grade demands.

Astounding Features, Flexible Use, Broad Applications

The TYPICAL TW3-343 integrates a cylinder-bed and reverse stitching for versatile industrial use. Designed for manual operation with an electric motor drive, it's ideal for bag production in factories and workshops sewing canvas, leather, jute, and other heavy fabrics. Its high lift presser foot and adjustable pressure adapt to a range of materials. Included accessories and robust build make it suitable for both experienced users and newcomers seeking elite performance in demanding environments.

Efficient Supply, Reliable Domestic and Export Logistics

The TYPICAL TW3-343 Bag Sewing Machine is backed by a reliable supply chain, supporting continuous high-volume production. With logistics covering the main domestic market and extensive export markets, buyers enjoy prompt availability and dependable delivery. Indian suppliers, traders, and wholesalers ensure a steady flow, making the machine accessible for industrial clients nationwide and internationally. Shop now to take advantage of our strong distribution network for the elite TW3-343 machine.

FAQ's of TYPICAL TW3-343 Bag Sewing Machine:

Q: How does the TYPICAL TW3-343 handle different material thicknesses for bag sewing?

A: The TYPICAL TW3-343 is equipped with a compound feed mechanism and a high-lift presser foot, enabling it to sew light through extra heavy materials-up to 10 mm thick, such as canvas, leather, and jute-while ensuring high stitch accuracy.

Q: What kind of threads and needles can be used with this machine?

A: This machine supports heavy-duty, synthetic, or cotton threads and uses DPx17 needles (#22-#24), making it suitable for a wide spectrum of industrial bag sewing applications.

Q: Where is the TYPICAL TW3-343 commonly used?

A: It is mainly employed in factories, workshops, and production facilities involved in high-volume bag manufacturing, sack closing, and sewing of thick materials.

Q: What are the benefits of the integrated semi-automatic lubrication system?

A: The semi-automatic lubrication system ensures all moving components are properly oiled, reducing maintenance time and enhancing machine longevity even during continuous operation.

Q: How does the supply process work for domestic and export orders?

A: Orders are efficiently managed via a well-established logistics network. Indian dealers, traders, and wholesalers service both the domestic market and export clients, ensuring reliable and timely supply of the TW3-343 sewing machines.
