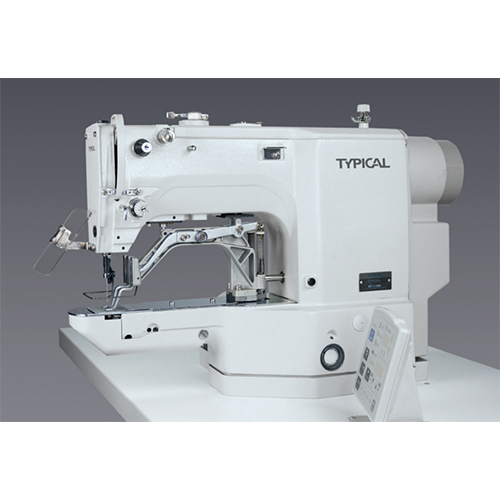

Typical GT-6430DAT-02-C Bar Tack Machine

Send Inquiry

Request To Call Back

Typical GT-6430DAT-02-C Bar Tack Machine

Get a Price/Quote

MOQ : 1 Piece

Typical GT-6430DAT-02-C Bar Tack Machine Specification

Sewing Speed
Up to 3,000 S.P.M.

Color
White/Grey

Dimension (L*W*H)
Approx. 730 x 300 x 620 mm

Stitch Formation
Bar Tack

Needle
DPx5, DPx17 (size 14-21)

Feed Mechanism
Needle Feed/Direct Drive

Stitch Length
8-42 mm (standard tack length)

Condition
New

Power
550W

Sewing Thickness
Medium to Heavy Duty (typically suitable for up to 8-10 mm fabrics)

Stitch width
2-8 mm (adjustable)

Voltage
220V/240V, 50/60Hz

Product Type
Bar Tack Sewing Machine

Safety Features
Error detection and safety stop

Pattern Capacity
Preset and customizable tack patterns

Application
Bar tacking on jeans, uniforms, outerwear, workwear, etc.

Accessories
Standard tool kit, instruction manual, oil bottle

Noise Level
Low noise operation

Display
LED Display panel

Drive Type
Servo Motor (energy-saving)

Thread Trimmer
Automatic built-in thread trimmer

Lubrication
Automatic lubricating system

Hook type
Rotary Hook

Weight
Approx. 55-60 kg

Control panel
Digital/Programmable

Warranty Extension
Optional longer warranty available upon request

Typical GT-6430DAT-02-C Bar Tack Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Typical GT-6430DAT-02-C Bar Tack Machine About

Technical Data

XY -Drive controlled by 2 stepping motors
Integrated Direct-Drive (550 Watt)
Machine work without compressed air
Oil-free needle, no oil stand on material
Thread ends after cutting about 2.02.5 mm
CB-Hook (Central Bobbin, standard size)
Data transfer by SD-Memory Card
50 customized programs can be stored
Memory capacity of 210,000 Stitches
All programs can be increased up to 200%
Stitch length: GT6430D: 0.112.7 mm; GT6438D: 0.16.4 mm

Clamp lift by solenoid:

GT6430D: 17 mm;
GT6438D: 13 mm

Max. sewing speed:

GT6430D: 3,200 spm;
GT6438D: 2,700 spm

89 (GT6430D) / 49 (GT6438D) sewing programs in machine memory
Button diameter 830 mm (GT6438D)

Models

GT6430D-01 | Electronic-controlled bar tacker with direct-drive for light to medium material
GT6430D-02 | Electronic-controlled bar tacker with direct-drive for medium to heavy material
GT6438D | Electronic-controlled button sewing machine with direct drive for 2-, 4-, and 6-hole buttons

Weight of machine head (incl. electronic control & control panel): ca. 73 kg

Experience the ace of bar tack machines with the Best-seller Typical GT-6430DAT-02-C, now available at an Exclusive Sale. This astounding virtuoso machine elevates your production line with its digital control panel and customizable tack patterns, ensuring both precision and creativity. The automatic lubricating system and inbuilt thread trimmer streamline your workflow, while the servo motor delivers energy-saving performance with low noise. Perfect for jeans, uniforms, and workwear, it combines innovation, robust construction, and trusted safety features. Get optional warranty extension and enjoy comprehensive accessories for a seamless setup.

Typical GT-6430DAT-02-C: Feature-Rich Bar Tack Virtuoso

The Typical GT-6430DAT-02-C boasts astounding versatility, offering a digital programmable control, preset and customizable patterns, and automatic lubrication. Designed for bar tacking on jeans, uniforms, and other heavywear, this ace machine handles medium to heavy-duty fabrics with ease. The direct drive and needle feed mechanism maximize precision, while the automatic thread trimmer amps up efficiency. Effortless electronic operation makes it an ideal choice for both expert tailors and large-scale garment manufacturers.

Supply Details: FOB Port, Payment & Certifications

Drop-off for the Typical GT-6430DAT-02-C Bar Tack Machine is available at major Indian FOB ports. Payment terms are flexible, accommodating varied procurement needs with secure options for both traders and wholesalers. Each machine is dispatched with authenticated certifications, ensuring compliance and guarantee of quality. Supply is streamlined to ensure rapid delivery and support, so your production never misses a beat. Certifications and optional extended warranties are available upon request for added peace of mind.

FAQ's of Typical GT-6430DAT-02-C Bar Tack Machine:

Q: How does the programmable control panel benefit my production process?

A: The digital, programmable control panel enables users to select or customize tack patterns easily, ensuring adaptable operations and reducing manual interventions for enhanced workflow efficiency.

Q: What fabrics and applications is the Typical GT-6430DAT-02-C best suited for?

A: This machine excels at bar tacking on medium to heavy fabrics such as jeans, uniforms, outerwear, and workwear, making it versatile for various garment and textile production settings.

Q: When should the automatic lubrication system be maintained?

A: Routine checks are advisable, though the automatic lubricating system is designed to ensure consistent performance with minimal maintenance, extending the machine's operational lifespan.

Q: Where are the drop-off ports for supply and dispatch of the machine?

A: Drop-off and supply for the GT-6430DAT-02-C are available at leading Indian FOB ports, supporting both wholesale and trader requirements for domestic and export markets.

Q: What safety and error detection features are built into the machine?

A: The GT-6430DAT-02-C integrates error detection and a safety stop function to promptly alert users to issues, preventing operational mishaps and enhancing overall workplace safety.

Q: How is the machine supported after purchase?

A: Each unit is supplied with standard accessories, manuals, and comprehensive after-sales support. Buyers can also opt for warranty extensions and certified servicing for ongoing assurance.
