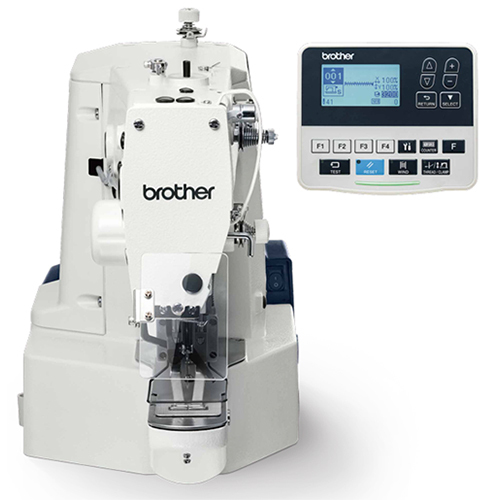

KE-430 DP-BE-438 DP Electronic Bartracker

Get a Price/Quote

MOQ : 1 Unit

KE-430 DP-BE-438 DP Electronic Bartracker Specification

Sewing Speed
Max. 3,000 stitches per minute (spm)

Stitch Formation
Lockstitch

Sewing Thickness
Heavy/Medium duty (Standard thickness range: up to 8mm depending on fabric type)

Feed Mechanism
Programmable Pattern Feed

Voltage
Single Phase 220V / 50Hz

Dimension (L*W*H)
690 x 505 x 690 mm (approx)

Product Type
Electronic Bartracker Sewing Machine

Stitch width
0.1 - 12.7 mm (variable, programmable)

Power
550W (built-in motor)

Color
White & Blue

Stitch Length
0.1 - 6.4 mm (variable, programmable)

Operate Method
Automatic

Condition
New

Needle
DPx5 (#16, standard) / Applicable: DP x 5 (DPx17)

Hook Type
Rotary Hook, Large Capacity

Application
Industrial

Thread Wiper
Equipped

Panel Type
LCD Programming Panel

Lubrication System
Semi-Dry (minimum lubrication)

Lighting
Integrated LED light

Memory Function
Yes, Program Save/Recall

Number of Patterns
50 built-in, expandable via memory card

Bobbin System
Side-loading, industrial type

Weight
Approx. 60 kg (with stand and motor)

Max Sewing Area
30 mm x 40 mm

Thread Take-up
Link type

Automatic Thread Trimmer
Equipped

Air Consumption
Not required (electric drive only)

KE-430 DP-BE-438 DP Electronic Bartracker Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About KE-430 DP-BE-438 DP Electronic Bartracker

Spotlight on the KE-430 DP-BE-438 DP Electronic Bartracker-your superb partner for denim, jeans, and heavy garment manufacturing! Unleash soaring productivity with a lofty sewing speed of 3,000 spm and a large sewing area of 30 mm x 40 mm. This industrial powerhouse features 50 built-in patterns, an LCD programming panel, and memory expandability via memory card. Enjoy seamless efficiency with automatic thread trimmer, link-type take-up, semi-dry lubrication, and programmable pattern feed. Available for a limited time-shop now and elevate your production line with excellence!

How to Use, Key Features, and Applications

With its computer-controlled LCD touch panel, the KE-430 DP-BE-438 DP Electronic Bartracker is user-friendly and precise. Program or recall patterns, adjust stitch width and length, and rely on its automatic thread trimmer for efficiency. Designed for bar-tacking denim, workwear, and heavy fabrics up to 8 mm, this machine ensures superb performance on every stitch. The rotary hook, large-capacity bobbin, and programmable feed mechanism guarantee seamless operation for medium to heavy-duty applications.

Export Markets, Supply Details, and Proposal Information

The KE-430 DP-BE-438 DP Electronic Bartracker enjoys lofty demand in key international markets such as Asia and Europe. With a robust supply ability, streamlined logistics, and FOB port options across India, we ensure prompt shipments. Proposal amounts, asking price, and volume contracts are tailored to your business needs. Request detailed information today and let us structure a solution that optimizes your manufacturing capability and cost efficiency.

FAQ's of KE-430 DP-BE-438 DP Electronic Bartracker:

Q: How does the KE-430 DP-BE-438 DP Electronic Bartracker enhance garment production?

A: The bartracker streamlines operations with features like programmable pattern feed, automatic thread trimming, and built-in pattern selection, resulting in faster throughput and consistent, quality stitching for heavy and medium-thickness garments.

Q: What is the process for expanding pattern options on this machine?

A: You can expand the 50 built-in patterns by uploading additional ones directly via the memory card slot, allowing custom or updated tack patterns tailored to your products.

Q: Where can the KE-430 DP-BE-438 DP Electronic Bartracker be effectively used?

A: This machine is ideal for production facilities focusing on denim, jeans, workwear, uniforms, and other heavy fabric items requiring strong bar-tacks.

Q: What are the key benefits of the semi-dry lubrication system?

A: The semi-dry lubrication system minimizes oil usage, promoting cleaner sewing, decreased maintenance, and extending the machine's operational life.

Q: How is the KE-430 DP-BE-438 DP controlled and what support does the LCD panel provide?

A: It is operated electronically via a touch-sensitive LCD programming panel, allowing easy selection, programming, and adjustment of stitch length, width, and patterns for maximum control and convenience.
